EU Standard Screw Mount 1 Pole Fused Terminal Block For 5x20mm Fuse

Name: EU Standard Screw Mount 1 Pole Fused Terminal Block For 5x20mm Fuse
Brand: Tianrui
Price: 1 USD

China EU Standard Screw Mount 1 Pole Fused Terminal Block For 5x20mm Fuse wholesale

Brand Name : Tianrui

Model Number : FT06-1 FT06P-1 FT06-1W

Certification : VDE CQC

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : EU Standard 1 Pole Fused Terminals

Rated Current : 6.3A

Rated Voltage : 250V

Rated Temperature : -40°C to 110°C

Fuse Size : 5x20mm

Fire Rating : UL 94V-2

Color : Gray

Pole : 1 Pole

Type : Fuse Block

Packing : 1000PCS

Contact Now

EU Standard Screw Mount 1 Pole Fused Terminals Block for 5x20mm Fuse

1. Housing : Polyamide 6/6 94V-2 grade

2. Metal Part : nickel plated, metal-alloy insert

3. Terminal Screw : M3 X 6 zinc plated

4. Earthing Screw : M3 X 14 zinc plated

5. Voltage/Ampere :

- Fuse Holder : 250V/6.3A

- Terminal : 450V/15A

6. Temperature : -40℃ to 110℃

FT06-1 FT06P-1 EU Standard Screw Mount 1 Pole Fused Terminals Block for 5x20mm Fuse

Model number	FT06-1 FT06P-1
Electrical parameters
IEC/EN
	Fuse terminal
Rated voltage(V)	250
Rated current(A)	6.3
Operating temp	Polyamide 66(V-2)	T55
Connection parameters
	IEC/EN standard
Connection capacity	Solid core wire	2.5-4.0mm2
	Stranded wire	2.5-4.0mm2
	Flexible wire	2.5-4.0mm2
Stripping length (mm)		7-8
Wiring		Screw locking
Screw size		M3
Repeatable wiring		√
Monopolar/Multipolar		Multipolar
Pole		1
Product fixing method		Screw
Materials
Insulation materials	Material	Polyamide 66
	Fire rating	UL 94V-2
Clamps		Copper
Matching product
Tube fuse		5x20mm
Packing quantity
1000

EU Standard Screw Mount 1 Pole Fused Terminal Block For 5x20mm Fuse

FT06-1W EU Standard Screw Mount 1 Pole Fused Terminals Block for 5x20mm Fuse

Model number	FT06-1W
Electrical parameters
IEC/EN
	Fuse terminal
Rated voltage(V)	250
Rated current(A)	6.3
Operating temp	Polyamide 66(V-2)	T55
Connection parameters
	IEC/EN standard
Connection capacity	Solid core wire	2.5-4.0mm2
	Stranded wire	2.5-4.0mm2
	Flexible wire	2.5-4.0mm2
Stripping length (mm)		7-8
Wiring		Screw locking
Screw size		M3
Repeatable wiring		√
Monopolar/Multipolar		Multipolar
Pole		1
Product fixing method		Screw
Materials
Insulation materials	Material	Polyamide 66
	Fire rating	UL 94V-2
Clamps		Copper, stainless steel (wire shrapnel)
Matching product
Tube fuse		5x20mm
Packing quantity
1000

EU Standard Screw Mount 1 Pole Fused Terminal Block For 5x20mm Fuse

Contact Details:

Andy Wu

Email: andy@tianrui-fuse.com.cn

MP/Whatsapp: +86 13532772961

Wechat: HFeng0805

Skype: andywutechrich

QQ: 969828363

Product Tags:

PA66 Fused Terminal Block

5x20mm Fused Terminal Block

6.3A Rated Fuse Blocks

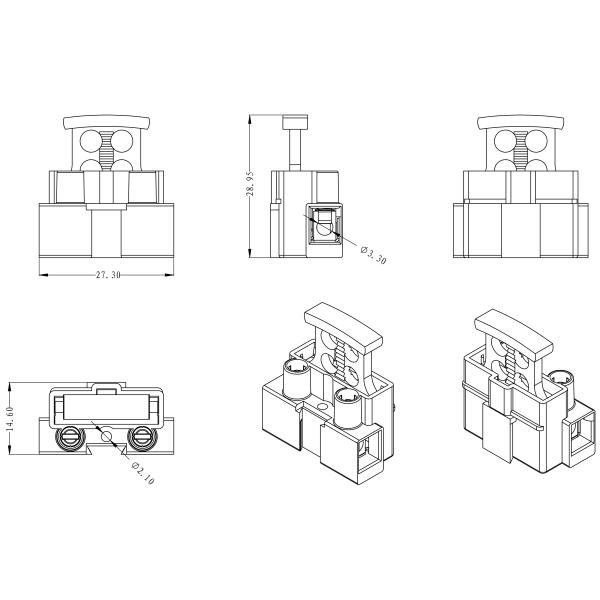

EU Standard Screw Mount 1 Pole Fused Terminal Block For 5x20mm Fuse Images
