High Current RF Resistor Thermal Cutoff Fuses Ceramic Case Temperature Protector

Brand Name : Tianrui

Model Number : RF

Certification : CCC

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : RF High Current Thermal Fuse

Rated Current : 10A 15A 20A

Rated Voltage : 250V AC

Rated Temperature : 90C to 250C

Body : Ceramic

Limit Temperature : 180℃

Leads : Axial

Tolerance : ±3℃

Type : Resistor Thermal Cutoff

Packing : PE bag

Contact Now

RF Resistor Ceramic Case Temperature Protector Thermal Cutoff High Current Thermal Fuse

High Current RF Resistor Thermal Cutoff Fuses Ceramic Case Temperature Protector

Structure and Dimension

Thermal link is made up of fusible alloy, special resin ,plastic case, sealant epoxy and lead wire.

High Current RF Resistor Thermal Cutoff Fuses Ceramic Case Temperature Protector
Main Material List
NO. ① ② ③
Component Case Sealant Lead wire
Materials ZI Case ZI Case Insulated copper wire

Marking On Products

High Current RF Resistor Thermal Cutoff Fuses Ceramic Case Temperature Protector

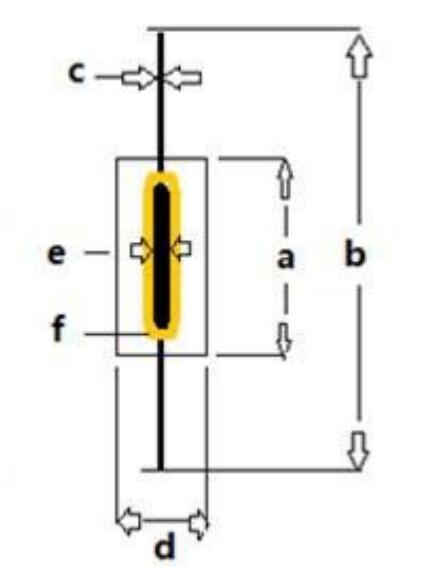

Dimension(mm)

Code Size(mm).
A 14.5士0.20
B 77土2
C 1.38士0.03
Dφ 6.0士0.0
E

High Current RF Resistor Thermal Cutoff Fuses Ceramic Case Temperature Protector

Note:

The lead length “E” can be customized as required. The dimension H is measured from the root of leadwire

RF 10A Thermal Fuse

Model ( Tf) ( C t ) ( Th) (Tm) (Ir ) (Ur) CCC
RF90 90℃ 86士3℃ 60℃ 180℃ 10A 250V ●
RF100 100℃ 96 士3℃ 70℃ 180℃ 10A 250V ●
RF110 110℃ 105 士3℃ 75℃ 180℃ 10A 250V ●
RF115 115℃ 110 士3℃ 78 ℃ 180℃ 10A 250V ●
RF120 120℃ 116士3℃ 83℃ 180℃ 10A 250V ●
RF125 125℃ 121 士3℃ 90℃ 180℃ 10A 250V ●
RF130 130℃ 125士3℃ 92℃ 180℃ 10A 250V ●
RF135 135℃ 131 士3℃ 95℃ 180℃ 10A 250V ●
RF140 140℃ 136士3℃ 100℃ 180℃ 10A 250V ●
R F145 145℃ 141 士3℃ 105 ℃ 180℃ 10A 250V ●
RF150 150℃ 116士3℃ 115℃ 180℃ 10A 250V ●
RF155 155℃ 150士3℃ 115℃ 200 ℃ 10A 250V ●
RF158 158℃ 155士3℃ 115℃ 200℃ 10A 250V ●
RF160 160℃ 157 士3℃ 125℃ 200℃ 10A 250V ●
RF165 165℃ 161士3℃ 125℃ 200℃ 10A 250V ●
RF170 170℃ 165士3℃ 125℃ 230℃ 10A 250V ●
RF172 172 ℃ 16士3℃ 135℃ 230 ℃ 10A 250V ●
RF175 175℃ 170士3℃ 135℃ 230℃ 10A 250V ●
RF180 180℃ 177士3℃ 140℃ 230℃ 10A 250V ●
RF185 185℃ 181士3℃ 148℃ 230℃ 10A 250V ●
RF188 188℃ 18 4士3℃ 148 ℃ 230℃ 10A 250V ●
RF190 190℃ 187士3℃ 148℃ 230℃ 10A 250V ●
RF192 192℃ 189士3℃ l155℃ 230℃ 10A 250V ●
RF195 195℃ 192士3℃ 155℃ 250℃ 10A 250V ●
RF200 200℃ 197士3℃ 160℃ 280℃ 10A 250V ●
RF210 210℃ 205士3℃ 172℃ 280℃ 10A 250V ●
RF216 216℃ 212士3℃ 175℃ 280℃ 10A 250V ●
RF230 230℃ 227士3℃ 185℃ 300℃ 10A 250V ●
RF240 240℃ 235士3℃ 190℃ 300℃ 10A 250V ●
RF250 250℃ 247士3℃ 208℃ 320℃ 10A 250V ●

RF 15A Thermal Fuse

Model ( Tf) ( C t ) ( Th) (Tm) (Ir ) (Ur ) CCC
RF90 90℃ 86士3℃ 60℃ 180℃ 15A 250V ●
RF100 100℃ 96 士3℃ 70℃ 180℃ 15A 250V ●
RF110 110℃ 105 士3℃ 75℃ 180℃ 15A 250V ●
RF115 115℃ 110 士3℃ 78 ℃ 180℃ 15A 250V ●
RF120 120℃ 116士3℃ 83℃ 180℃ 15A 250V ●
RF125 125℃ 121 士3℃ 90℃ 180℃ 15A 250V ●
RF130 130℃ 125士3℃ 92℃ 180℃ 15A 250V ●
R F135 135℃ 131 士3℃ 95℃ 180℃ 15A 250V ●
RF140 140℃ 136士3℃ 100℃ 180℃ 15A 250V ●
R F145 145℃ 141 士3℃ 105 ℃ 180℃ 15A 250V ●
RF150 150℃ 116士3℃ 115℃ 180℃ 15A 250V ●
RF155 155℃ 150士3℃ 115℃ 200 ℃ 15A 250V ●
RF158 158℃ 155士3℃ 115℃ 200℃ 15A 250V ●
RF160 160℃ 157 士3℃ 125℃ 200℃ 15A 250V ●
RF165 165℃ 161士3℃ 125℃ 200℃ 15A 250V ●
RF170 170℃ 165士3℃ 125℃ 230℃ 15A 250V ●
RF172 172 ℃ 16士3℃ 135℃ 230 ℃ 15A 250V ●
RF175 175℃ 170士3℃ 135℃ 230℃ 15A 250V ●
RF180 180℃ 177士3℃ 140℃ 230℃ 15A 250V ●
RF185 185℃ 181士3℃ 148℃ 230℃ 15A 250V ●
RF188 188℃ 18 4士3℃ 148 ℃ 230℃ 15A 250V ●
RF190 190℃ 187士3℃ 148℃ 230℃ 15A 250V ●
RF192 192℃ 189士3℃ l155℃ 230℃ 15A 250V ●
RF195 195℃ 192士3℃ 155℃ 250℃ 15A 250V ●
RF200 200℃ 197士3℃ 160℃ 280℃ 15A 250V ●
RF210 210℃ 205士3℃ 172℃ 280℃ 15A 250V ●
RF216 216℃ 212士3℃ 175℃ 280℃ 15A 250V ●
RF230 230℃ 227士3℃ 185℃ 300℃ 15A 250V ●
RF240 240℃ 235士3℃ 190℃ 300℃ 15A 250V ●
RF250 250℃ 247士3℃ 208℃ 320℃ 15A 250V ●

RF(20A)

Model ( Tf) ( C t ) ( Th) (Tm) (Ir ) (Ur ) CCC
RF90 90℃ 86士3℃ 60℃ 180℃ 20A 250V ●
RF100 100℃ 96 士3℃ 70℃ 180℃ 20A 250V ●
RF110 110℃ 105 士3℃ 75℃ 180℃ 20A 250V ●
RF115 115℃ 110 士3℃ 78 ℃ 180℃ 20A 250V ●
RF120 120℃ 116士3℃ 83℃ 180℃ 20A 250V ●
RF125 125℃ 121 士3℃ 90℃ 180℃ 20A 250V ●
RF130 130℃ 125士3℃ 92℃ 180℃ 20A 250V ●
R F135 135℃ 131 士3℃ 95℃ 180℃ 20A 250V ●
RF140 140℃ 136士3℃ 100℃ 180℃ 20A 250V ●
R F145 145℃ 141 士3℃ 105 ℃ 180℃ 20A 250V ●
RF150 150℃ 116士3℃ 115℃ 180℃ 20A 250V ●
RF155 155℃ 150士3℃ 115℃ 200 ℃ 20A 250V ●
RF158 158℃ 155士3℃ 115℃ 200℃ 20A 250V ●
RF160 160℃ 157 士3℃ 125℃ 200℃ 20A 250V ●
RF165 165℃ 161士3℃ 125℃ 200℃ 20A 250V ●
RF170 170℃ 165士3℃ 125℃ 230℃ 20A 250V ●
RF172 172 ℃ 16士3℃ 135℃ 230 ℃ 20A 250V ●
RF175 175℃ 170士3℃ 135℃ 230℃ 20A 250V ●
RF180 180℃ 177士3℃ 140℃ 230℃ 20A 250V ●
RF185 185℃ 181士3℃ 148℃ 230℃ 20A 250V ●
RF188 188℃ 18 4士3℃ 148 ℃ 230℃ 20A 250V ●
RF190 190℃ 187士3℃ 148℃ 230℃ 20A 250V ●
RF192 192℃ 189士3℃ 155℃ 230℃ 20A 250V ●
RF195 195℃ 192士3℃ 155℃ 250℃ 20A 250V ●
RF200 200℃ 197士3℃ 160℃ 280℃ 20A 250V ●
RF210 210℃ 205士3℃ 172℃ 280℃ 20A 250V ●
RF216 216℃ 212士3℃ 175℃ 280℃ 20A 250V ●
RF230 230℃ 227士3℃ 185℃ 300℃ 20A 250V ●
RF240 240℃ 235士3℃ 190℃ 300℃ 20A 250V ●
RF250 250℃ 247士3℃ 208℃ 320℃ 20A 250V ●
